§08 · Deploy & operate

Connecting to the control plane

Turn on managed mode: mint a deployment token, mount it as a Secret, and point the manager at your platform over a single outbound WebSocket.

By default the operator stays local. To make a cluster show up in the Exo dashboard, with its agents, sessions, runtime statuses, and audit, enable managed mode and give it a deployment token. It opens one outbound WebSocket to your platform and holds it open. No inbound connectivity needed.

Managed vs unmanaged

  • Unmanaged (AUTONOMIC_MANAGED=false, default). The operator reconciles CRs and runs workloads but never contacts a control plane. Good for dev clusters and air-gapped sites.
  • Managed (AUTONOMIC_MANAGED=true). The operator connects to AUTONOMIC_BASE_URL and streams CR statuses, memory refs, context summaries, and session events. Requires a deployment token.

Mint a deployment token

In the dashboard, go to Deployments → New, name the deployment (e.g. prod-eu-west-1), and copy the token shown once. Format, rotation, revocation, and the one-token-one-deployment rule live in Tokens & deployments.

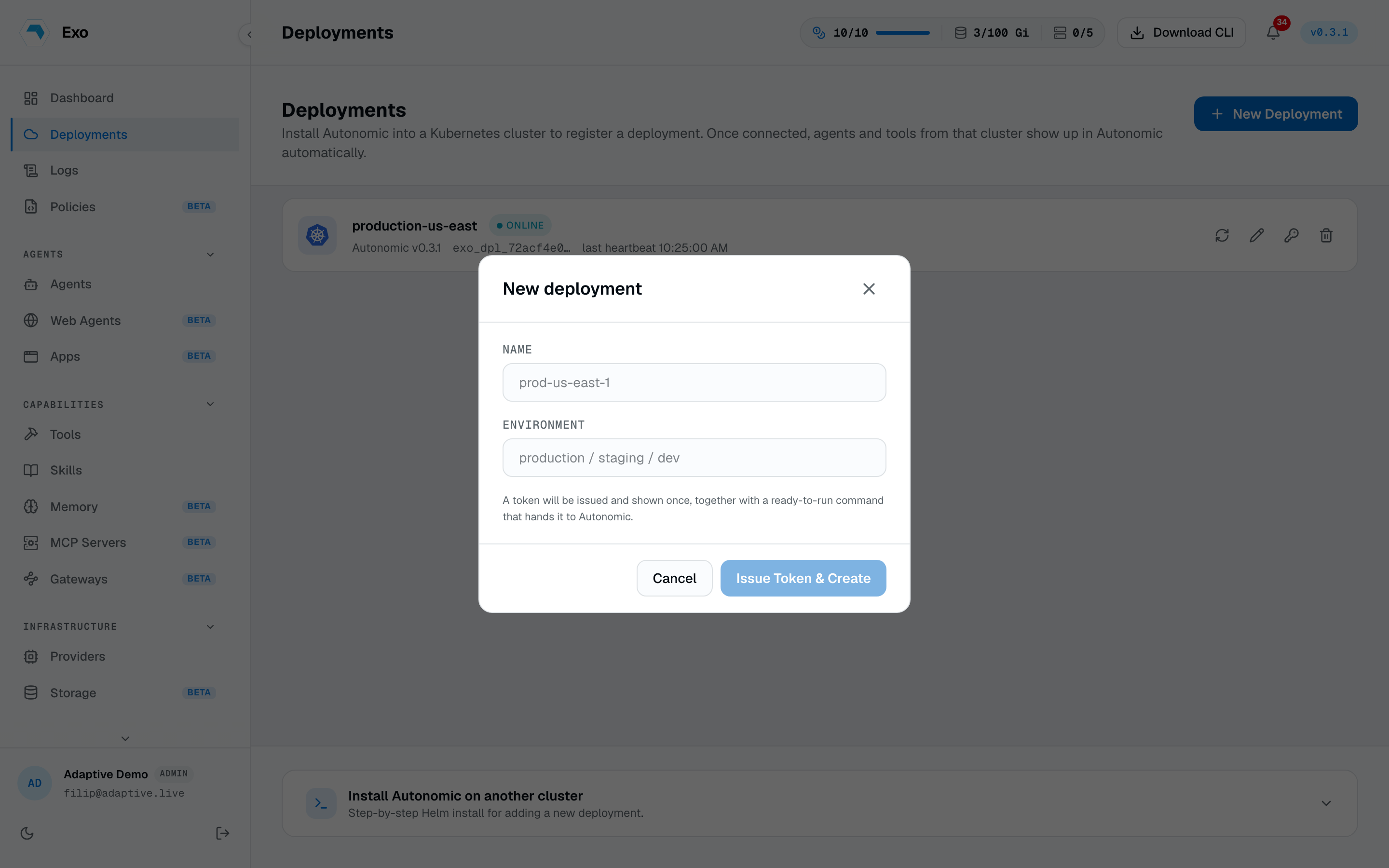

The Deployments page in the Exo dashboard with the install wizard expanded
Deployments → New Deployment. The dashboard walks the whole flow: add the chart repo, issue the token (shown once), install into your cluster, verify the pod.

Store it as a Secret

The manager reads its token from a Secret named autonomic-auth (key token) by default. The Deployment references it as optional: true, so an unmanaged install needs no Secret. For managed mode, create it.

●terminal· bash
kubectl -n autonomic-system create secret generic autonomic-auth \
  --from-literal=token=<your-deployment-token>

Operator env vars

●manager env· text
1AUTONOMIC_MANAGED     "true" to phone home (default "false")
2AUTONOMIC_BASE_URL    platform URL (default https://exo.adaptive.live)
3AUTONOMIC_AUTH_TOKEN  deployment token; from Secret autonomic-auth/token
4AUTONOMIC_CLUSTER_ID  stable cluster id (defaults to the pod namespace/hostname)
5AUTONOMIC_TRANSPORT   "ws" (default) or "http" (legacy reporter)

Via Helm these map to chart values:

●terminal· bash
helm upgrade autonomic exo/autonomic --reuse-values \
  --set manager.managed=true \
  --set manager.baseURL=https://exo.example.com \
  --set manager.authTokenSecret.name=autonomic-auth \
  --set manager.authTokenSecret.key=token

The connection

Managed mode opens one multiplexed WebSocket to <base-url>/api/autonomic/connect, carrying the deployment token as a Bearer credential. Snapshots, deltas, heartbeats, I/O, and session events all ride it. If a proxy sits in front of the platform, it has to allow long-lived upgrades (see Networking).

Verifying the connection

The Deployments page with a connected deployment showing online status and last heartbeat
A healthy connection: the deployment row shows online, the operator version, the token prefix, and the last heartbeat.

After enabling managed mode, the deployment flips to online in the dashboard within a few seconds and its resource lists populate. If it stays offline, check the manager logs.

●terminal· bash
kubectl -n autonomic-system logs deploy/autonomic-manager --tail=50

The two usual failures are token rejected (rotated/revoked, or a typo in the Secret) and connection refused (egress firewall blocking the platform host on 443).
