LLM gateways

Without a gateway each agent pod holds a provider key and calls the vendor directly — fine until you want to know who spent what, or to stop one runaway agent from burning a month of budget. An LLM gateway is a workload the operator runs in your cluster: agents talk to it, it talks to the providers. Open Capabilities → Gateways.

What a gateway does

• Holds the keys. Provider credentials are synced into the gateway; agent pods get a short-lived virtual key instead of the real one.
• Meters everything. Requests, input and output tokens, cache reads and writes, and priced spend — attributed to an agent and a user.
• Enforces budgets. Per-session and per-period spend caps plus request and token rate limits, per agent or per user.

Create a gateway

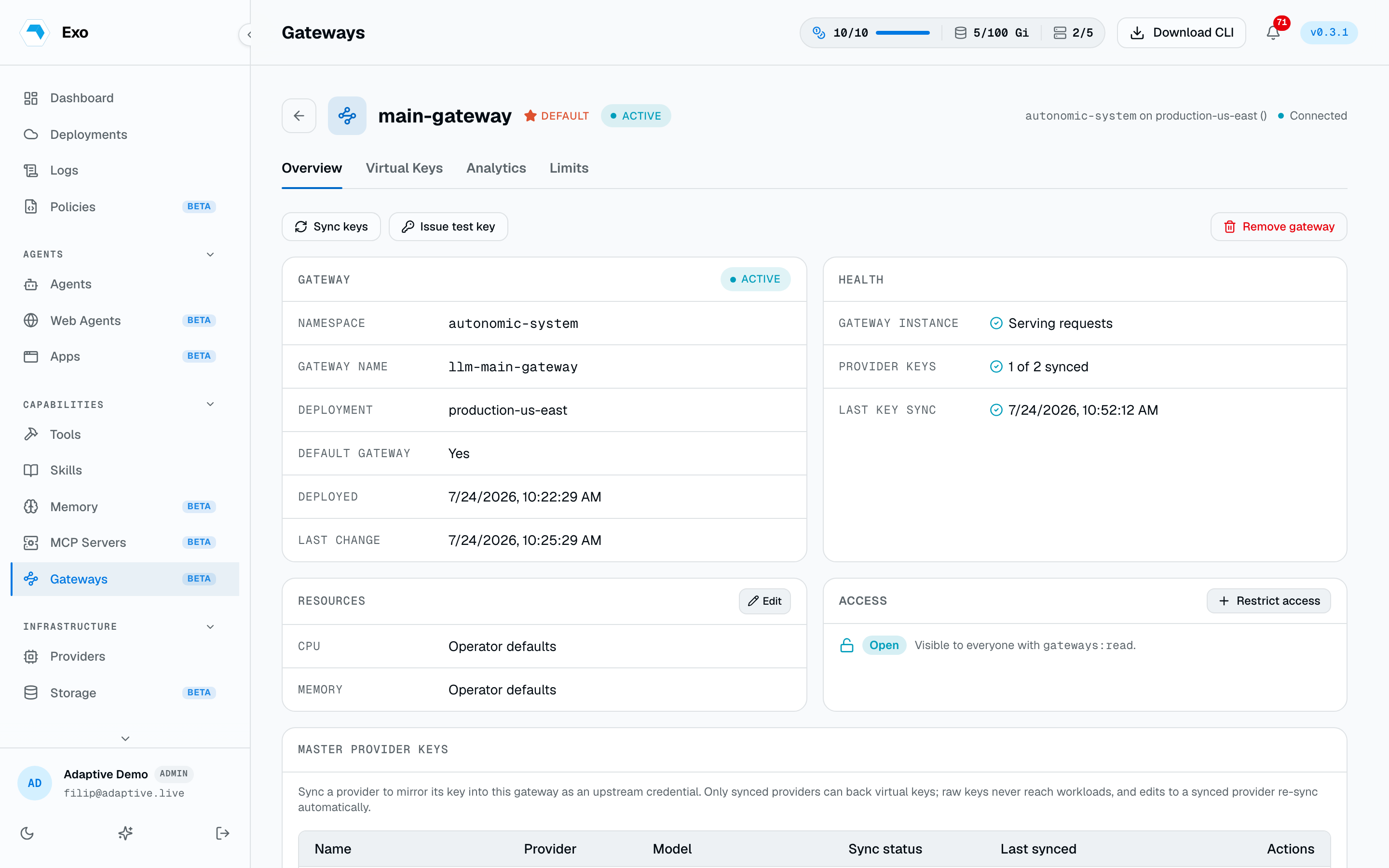

Pick the deployment, give it a DNS-style name, and optionally mark it the deployment's default. The status walks pending → provisioning → active; the detail page shows the reported endpoint and the last error if it stalls. Marking a gateway default clears the flag on its siblings — a deployment has at most one.

Sync providers into it

Providers are opt-in per gateway. Syncing a provider copies its upstream credential into the gateway and creates a link; only synced providers front agent traffic and can back virtual keys. Once a provider is synced, later edits to it re-sync automatically. Opting a provider back out removes its upstream key from the gateway.

Route agents through it

Agents, apps, and web agents all carry the same Use gateway switch on their create and edit forms. Three states:

1spec:
2  gateway:
3    name: shared-gateway
4    namespace: adaptive

Re-pointing an existing agent needs the operator's set-agent-gateway capability. The change lands on the next pod.

Virtual keys

When an agent session starts, Exo mints a virtual key from the gateway scoped to that session, that agent, and one provider. The key material is shown once and never stored. The gateway tracks per-key spend, requests, and tokens broken out by class — uncached input, output, cache reads, cache writes. Keys are session-scoped: one expires when its session ends, and can be revoked at any time from the gateway's key list.

Admins can mint keys by hand from the same page — useful for pointing an application at the gateway, or for verifying the pipeline end to end. A key minted for a user must name the provider it is limited to.

export OPENAI_BASE_URL=https://<gateway-endpoint>/v1

export OPENAI_API_KEY=<minted-virtual-key>

Budgets & rate limits

A budget rule targets agents or users — named, or * for all of that scope — and applies to each target independently:

Usage analytics

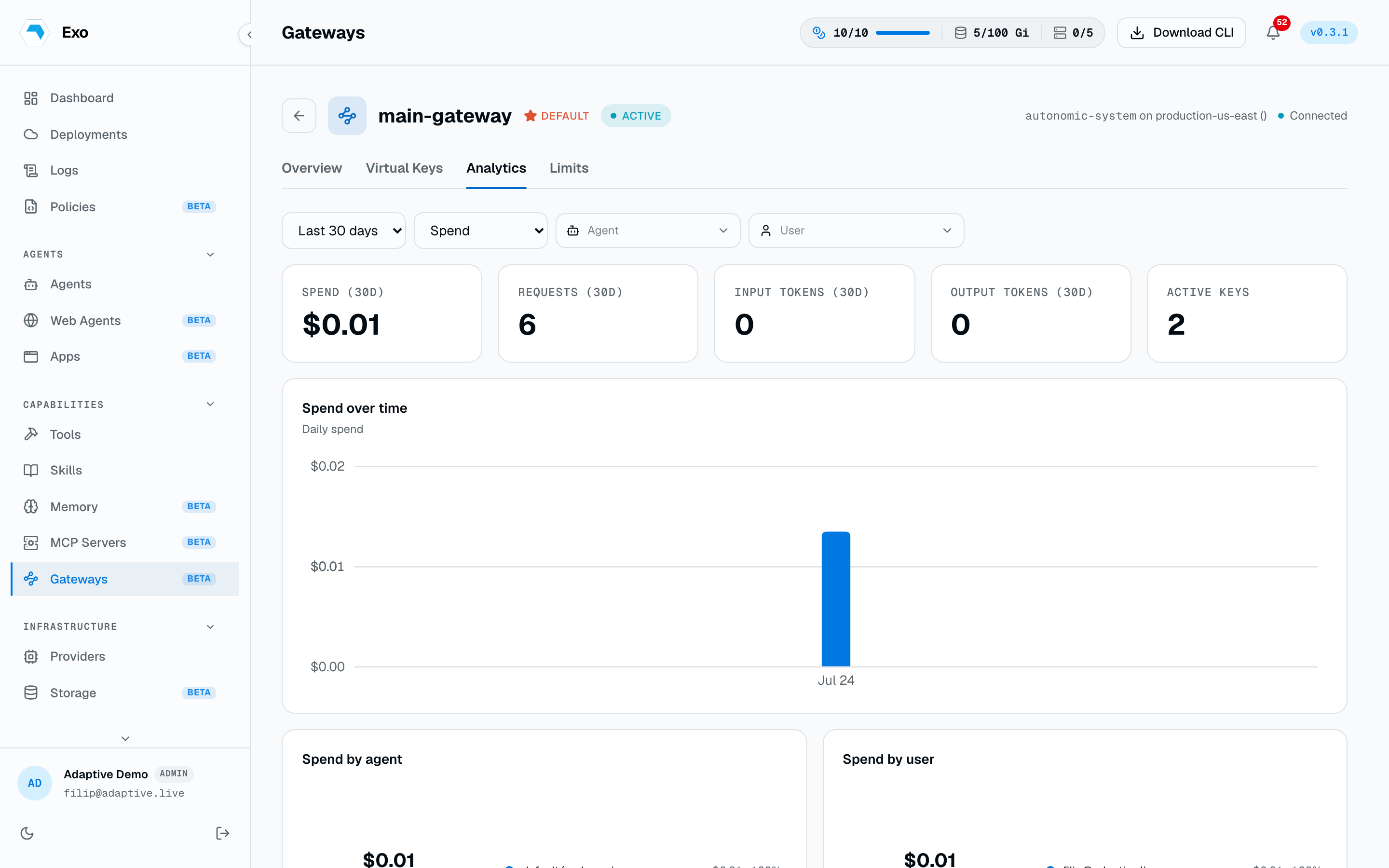

The gateway's Usage tab plots spend, requests, and tokens over a chosen window, sliced three ways: by agent, by user, and by day. Cache spend is broken out separately, which is usually the fastest way to see whether a prompt-caching change actually paid off. Filters narrow to one agent or one user.

Scaling

Replica CPU and memory requests and limits are editable from the detail page; the operator rolls the StatefulSet. Clearing the fields returns the gateway to the operator's in-cluster defaults. Deleting a gateway reports any credentials left behind so you can clean them up.

1apiVersion: autonomic.sh/v1alpha1
2kind: LLMGateway
3metadata:
4  name: shared-gateway
5  namespace: adaptive
6spec:
7  replicas: 2
8  service:
9    type: ClusterIP
10    port: 4000
11  resources:
12    requests:
13      cpu: 500m
14      memory: 1Gi
